| Viscosity | Grade | Product positioning |
| 0W-20 | SP/C6 | Premium full synthetic engine oil |
| 0W-40 | SQ/C3 | |
| 5W-30 | SQ/C2/C3 | |
| 5W-40 | SQ/C3 |

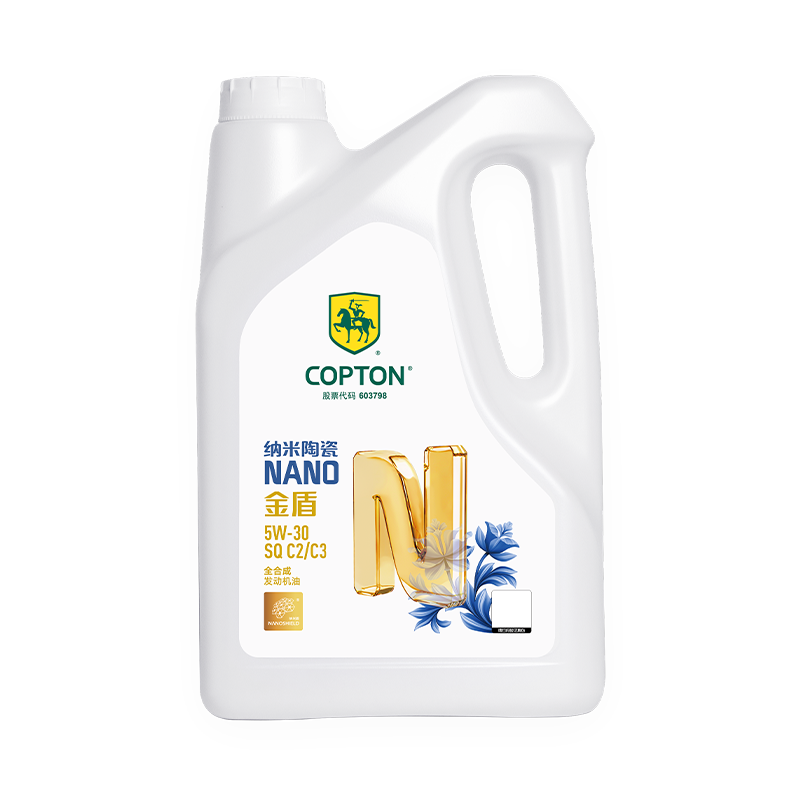

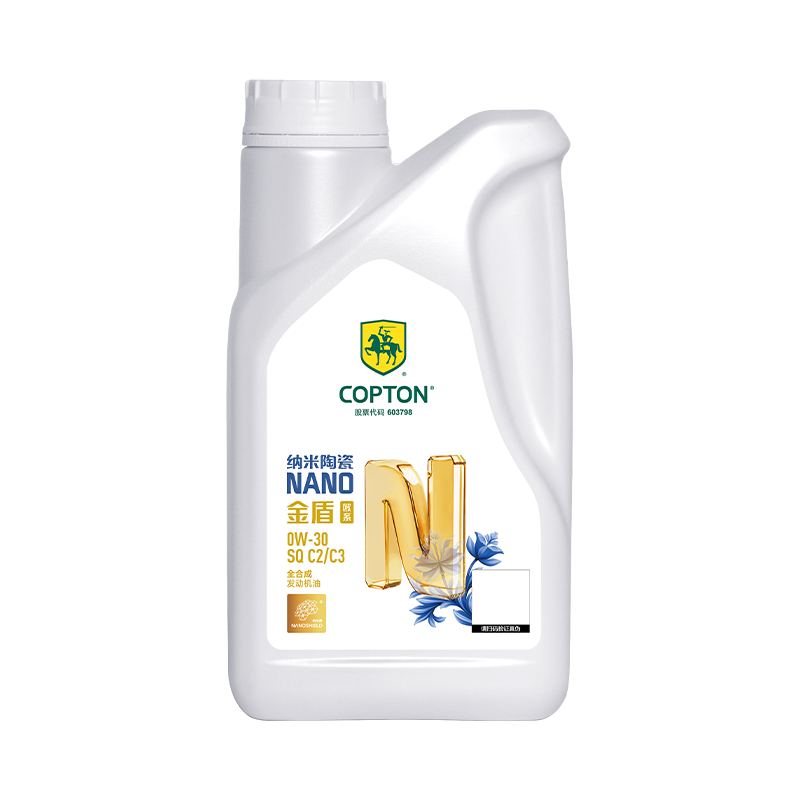

COPTON NANO Golden Shield
Fully Synthetic Engine Oil
Gasoline engine oil
NANO series
Fully Synthetic
RECOMMENDED APPLICATIONS
Advanced full-synthetic base oils plus imported additives provide all-round protection in harsh conditions.
Ultra-high viscosity index ensures quick response and strong power at all temperatures.
88% better piston detergency* curbs sludge and carbon buildup for lasting engine performance.
75% less camshaft wear* to withstand frequent start-stop and heavy loads.
*Data from DV6C, OM 646LA tests vs. ACEA standards.
PRODUCT FEATURES
Exceeds Euro VI/China VI environmental protection oil standards, featuring a proprietary formula with low sulfur, low phosphorus, and low ash content, effectively protecting GPF/DPF/TWC exhaust after-treatment devices.
CHINA VI EMISSION STANDARD
Recommended for use with luxury brand models such as Mercedes-Benz, BMW, Porsche, Audi, Land Rover, and Volvo; suitable for gasoline, light-duty diesel, and hybrid (HEV hybrid electric/PHEV plug-in hybrid/REEV range-extended electric) engines.
TYPICAL DATA
| NANO Golden Shield Fully Synthetic Engine Oil | SAE | Testing method | |||||
| Item | 0W-20 | 0W-40 | 5W-30 | 5W-40 | |||
| Kinematic Viscosity(100ºC), mm2/s | 8.268 | 13.520 | 11.570 | 13.98 | GB/T265 | ||
| Low temperature Viscosity, mPa·s | -35 ºC | 5207 | 5312 | GB/T6538 | |||
| -30 ºC | 3694 | 6094 | |||||
| -25 ºC | |||||||
| -20℃ | |||||||
| ＨＴＨＳ（＠150℃，mPa.S) | / | / | SH/T 0618 | ||||
| Flash Point，ºC | 234 | 236 | 236 | 236 | GB/T 3536 | ||
| Pour Point，ºC | -43 | -43 | -44 | -38 | GB/T 3535 | ||
| Foamability (foaming tendency/foam stability),ml/ml Previous 24°C；93.5℃；After 24℃；150℃ | 0/0 0/0 0/0 60/0 | 0/0 0/0 0/0 60/0 | 0/0 0/0 0/0 60/0 | 0/0 0/0 0/0 60/0 | GB/T 12579 SH/T 0722 | ||
| TBN | 9.6 | 6.4 | 6.4 | 6.4 | SH/T 0251 | ||
| Sulfate ash | 0.80 | 0.69 | 0.69 | 0.69 | GB/T 2433 | ||
PACKING SPECIFICATIONS

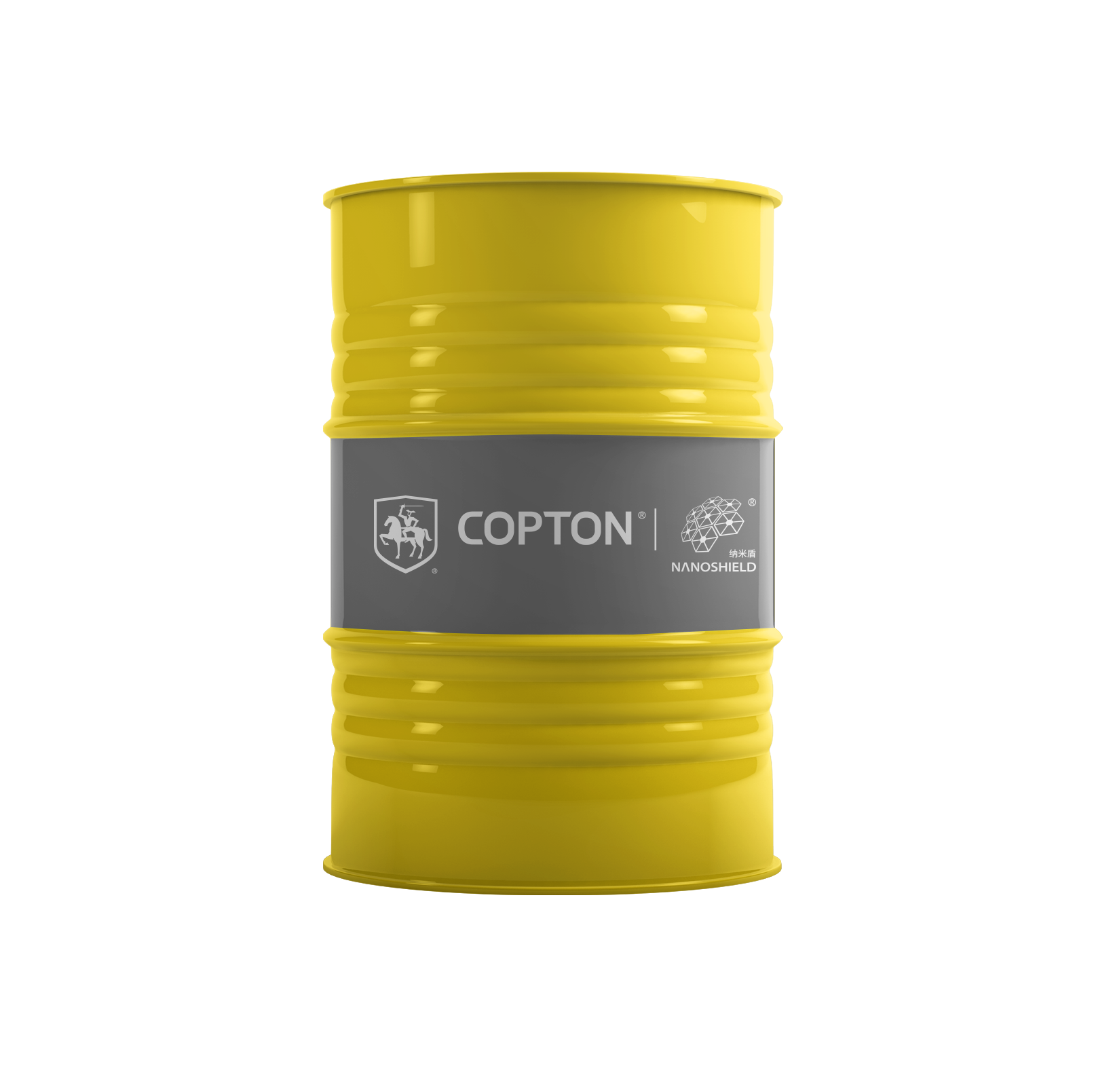

1L/4L/T200Lor packing according to customer needs.
